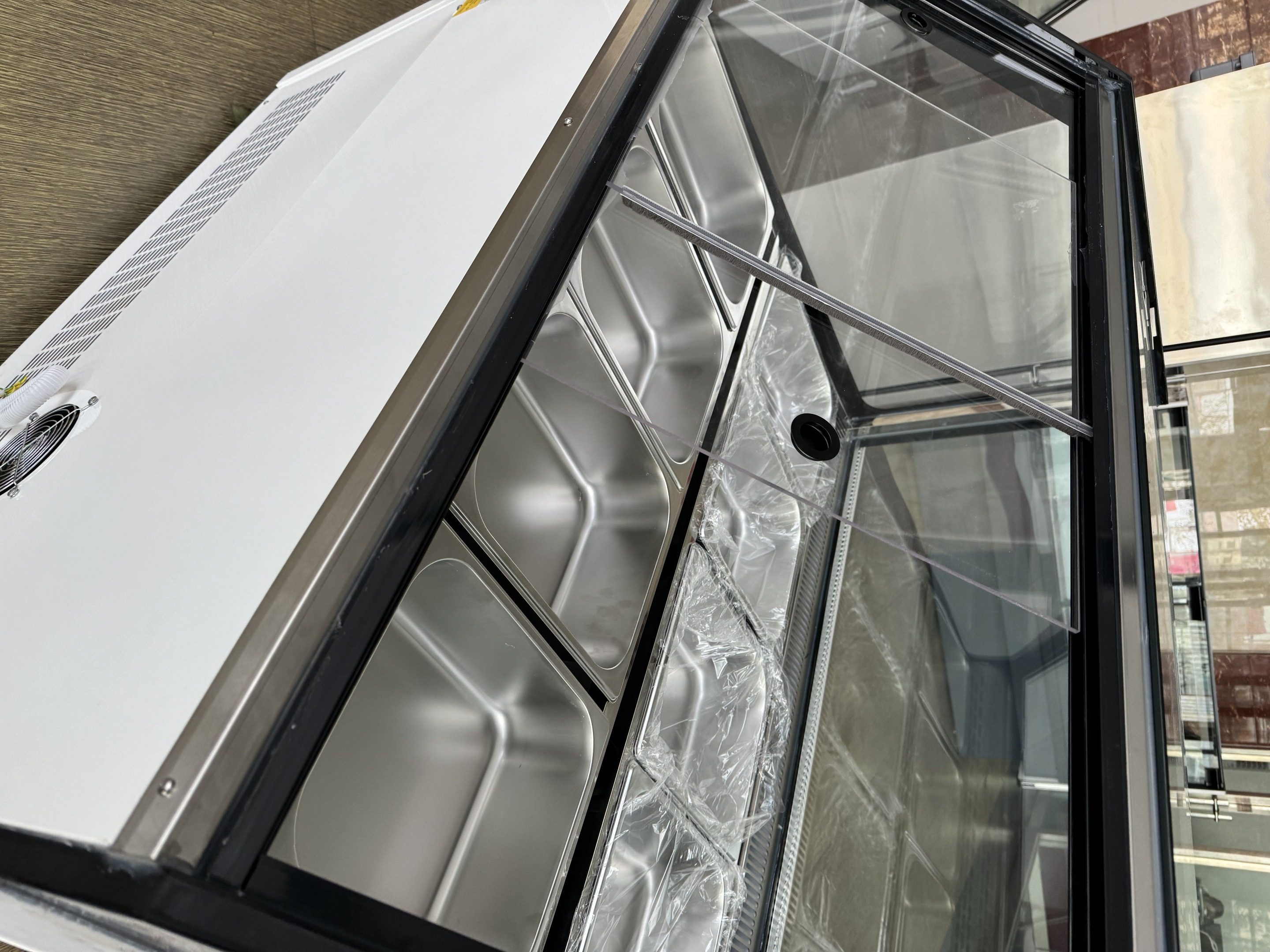

Ice cream freezer B1
Ice cream refrigerators are widely used in supermarkets, convenience stores, fruit chain stores, and other places for displaying and storing ice cream and other low-temperature foods. Its compact structure and open display design make it very suitable for the usage needs of these places
——Can support customization
Submit product intent
Product details
| Imported compressor | 5800 | 6800 | 7800 | 9800 |
| Refrigeration method | Air cooling | Air cooling | Air cooling | Air cooling |
| Package size | 1010*960*1300 | 1280*960*1300 | 1550*960*1300 | 1820*960*1300 |
| Freezer size | 910*860*1200 | 1180*860*1200 | 1450*860*1200 | 1720*860*1200 |
| Effective volume | 320 | 380 | 440 | 500 |
| Temperature range (degrees Celsius) | -20 | -20 | -20 | -20 |
| Power(W) | 800 | 900 | 1000 | 1100 |
| Compressor unit power (W) | 600 | 600 | 800 | 800 |
| Controller Style (Mechanical/Electronic) |
Electronic | Electronic | Electronic | Electronic |
| Energy Remarks | NO | NO | NO | NO |
| Housing material | Baked paint board | Baked paint board | Baked paint board | Baked paint board |
| Inner material | Baked paint board | Baked paint board | Baked paint board | Baked paint board |
| Evaporator material | copper | copper | copper | copper |
| Condenser material | copper | copper | copper | copper |
| Foam thickness (box/liner) | 60MM | 60MM | 60MM | 60MM |
| Glass door glass thickness | 10MM | 10MM | 10MM | 10MM |
| Glass profile (coated or not) | Electric heating wire | Electric heating wire | Electric heating wire | Electric heating wire |
| Add partitions | yes | yes | yes | yes |
| Number of plates | 6 | 8 | 10 | 12 |
| Plate size | 360*265*100MM | 360*265*100MM | 360*265*100MM | 360*265*100MM |
| Lift door material | ||||
| Compressor brand | Science popularization | Science popularization | Science popularization | Science popularization |
| Power plug standard | European, American, | European, American | European, American | European, American |
| Voltage(V) | 220V-50HZ | 220V-50HZ | 220V-50HZ | 220V-50HZ |
| Power cord length | 2 meters | 2 meters | 2 meters | 2 meters |
| Net weight | ||||
| Compressor model | 18 | 18 | 21 | 21 |
| Refrigerant model | R290A | R290A | R290A | R290A |
| Drain size | Automatic evaporation of water | Automatic evaporation of water | Automatic evaporation of water | Automatic evaporation of water |
| Built-in LED light | Yes | Yes | Yes | Yes |
| Number of LED tubes/light color | 1 | 1 | 1 | 1 |
| Weight | 120 | 140 | 160 | 180 |
| Warranty | 1 year | 1 year | 1 year | 1 year |
| Service life | 10 years | 10 years | 10 years | 10 years |
